RecipesExample

RecipesExample 是 SQL 查询：从入门到实践（第４版） 提供的示例数据库。

导入数据

使用 schema.SQL 文件导入建表语句，使用 data.SQL 导入数据。

view.sql 是书中提供的参考答案，以创建视图的形式保存在 SQL 文件中，可以参考，意义不大，也用不上。

[!CAUTION] DrawSQL 疑似不支持 ADD CONSTRINAT 语句，可以删除该关键词，直接使用 Foreign Key 关键词。或者直接使用本文档同目录下 schema-for-drawsql.sql 文件。

mysql -uroot -p12345 < "schema.SQL"
mysql -uroot -p12345 < "data.SQL"

导入数据到 Mysql 容器中，首先需要将文件拷贝到容器中：

docker exec -it container_name mysql -uroot -p12345 -t < /path/to/schema.SQL
docker exec -it container_name mysql -uroot -p12345 -t < /path/to/data.SQL

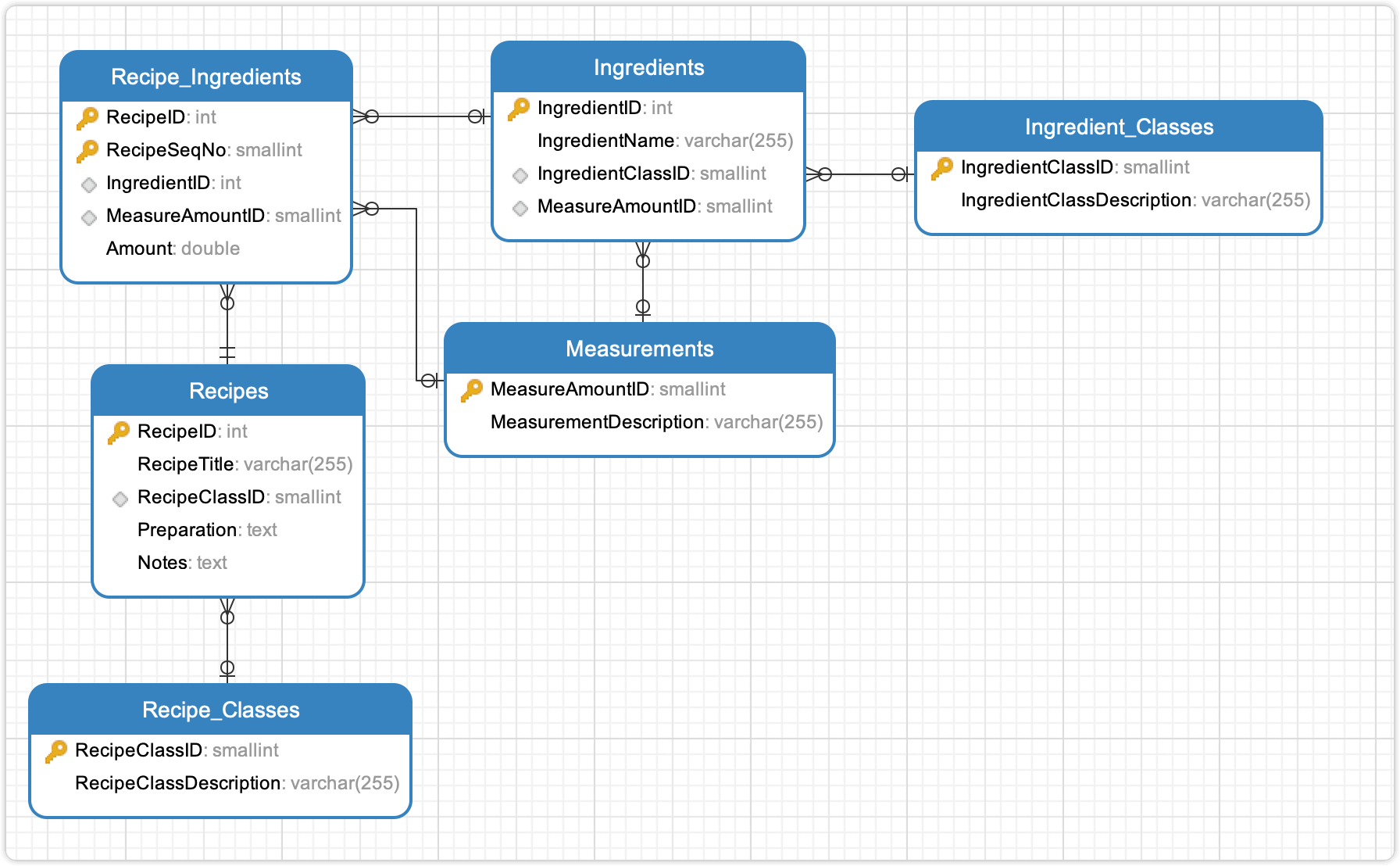

ERD 关系图

Navicate Export ERD DrawSQL Export ERD

或者直接访问 DrawSQL，查看 ERD 关系图。

表字段注释

数据库包含 6 张表：

Recipes 菜品表
- RecipeID 菜品 ID
- RecipeTitle 菜品名称
- RecipeClassID 菜品分类 ID
- Preparation 菜品制作方法
- Notes 菜品提示
Recipe_Classes 菜品分类表
- RecipeClassID 菜品分类 ID
- RecipeClassDescription 菜品分类名称
Ingredients 食材表（成分）
- IngredientID 食材 ID
- IngredientName 食材名称
- IngredientClassID 食材分类
- MeasureAmountID 计量单位 ID
Ingredient_Classes 食材分类表
- IngredientClassID 食材分类 ID
- IngredientClassDescription 成分分类名称
Recipe_Ingredients 菜品-食材 linking table
- RecipeID 菜品 ID
- IngredientID 食材 ID
- RecipeSeqNo 食材顺序
- MeasureAmountID 计量单位 ID
- Amount 食材用量用量
Measurements 计量单位表
- MeasureID 计量单位 ID
- MeasurementDescription 计量单位名称

练习

#8.2.3-2 使用内连接，列出数据库中所有菜品的名称，制作方法和菜品类型描述

返回 15 条记录

select RecipeTitle, RecipeClassDescription, Preparation
from Recipes
inner join Recipe_Classes
on Recipe_Classes.RecipeClassID = Recipes.RecipeClassID;

书中示例，返回 15 条记录：

select RecipeTitle, RecipeClassDescription, Preparation
from Recipes, Recipe_Classes
where Recipe_Classes.RecipeClassID = Recipes.RecipeClassID;

由于是 所有菜品，所以正确 SQL 应该是使用 left join，但本题出现在内连接章节中，且不论是内连接，还是左外连接，由于不存在没有菜品分类的菜品，所以结果是一样。

#8.2.3-2 使用内连接，列出数据库中菜品分类为主菜 Main course 或者甜品 Dessert 的菜品的名称，制作方法和菜品类型描述

需求分析，Recipes 共有 15 条记录，Recipe_Classes 共有 7 条件，也就是造成了 7 x 15 = 105 条查询记录

返回 9 条记录：

select RecipeTitle, RecipeClassDescription, Preparation
from Recipes
inner join Recipe_Classes
on Recipe_Classes.RecipeClassID = Recipes.RecipeClassID
where RecipeClassDescription = "Main course"
or RecipeClassDescription = "Dessert";

#8.2.3-3 使用内连接，使用子查询优化上述查询

使用子查询优化后，子查询的派生表 Derived Table 只有 2 条数据，内连接表 Recipes 有 7 条数据，于是就有了 7 x 2 = 14 条查询记录。

虽然理论上降低了参与查询的数据量，优化了查询速度，但实际上 Mysql 优化器会进行主动优化。通过 Explain 分析查询语句，发现两种查询语句的效率其实是一样的。

返回 9 条记录：

select RecipeTitle, Preparation, DerivedTable.RecipeClassDescription
from (
  select RecipeClassID, RecipeClassDescription
  from Recipe_Classes
  where RecipeClassDescription = "Main course"
  or RecipeClassDescription = "Dessert"
) as DerivedTable -- [!code ++] 子查询派生表需要添加别名 alias
inner join Recipes
on DerivedTable.RecipeClassID = Recipes.RecipeClassID;

#8.2.3-4 使用内连接，五表连接，获取菜品类型、菜品名、制作说明、食材名、食材序号、食材数量和食材度量单位，并按菜品名和序号排序

5表连接

如果不存在外键缺失为 NULL 的情况，可以不使用左外连接来获取结果集，因为不存在外键为 NULL 的情况。但如果存在外键为 NULL 的情况，就必须使用 left join 来获取这些数据，因为可能存在没有分类的菜品，没有食材的菜品等情况。

返回 88 条记录：

select Recipe_Classes.RecipeClassDescription,
	Recipes.RecipeTitle,
	Ingredients.IngredientName,
	Recipe_Ingredients.RecipeSeqNo,
	Recipe_Ingredients.Amount,
	Measurements.MeasurementDescription,
	Recipes.Preparation
from Recipes
inner JOIN Recipe_Classes on Recipes.RecipeClassID = Recipe_Classes.RecipeClassID
inner JOIN Recipe_Ingredients on Recipes.RecipeID = Recipe_Ingredients.RecipeID
inner JOIN Ingredients on Recipe_Ingredients.IngredientID = Ingredients.IngredientID
inner join Measurements on Recipe_Ingredients.MeasureAmountID = Measurements.MeasureAmountID
order by
Recipes.RecipeTitle,
RecipeSeqNo;
Recipes.RecipeTitle;

书中示例 1，返回 88 条记录：

SELECT
Recipe_Classes.RecipeClassDescription,
Recipes.RecipeTitle,
Recipes.Preparation,
Ingredients.IngredientName,
Recipe_Ingredients.RecipeSeqNo,
Recipe_Ingredients.Amount,
Measurements.MeasurementDescription
FROM (
  (
    (
      Recipe_Classes
      INNER JOIN Recipes
      ON Recipe_Classes.RecipeClassID =
      Recipes.RecipeClassID
    )
    INNER JOIN Recipe_Ingredients
    ON Recipes.RecipeID =
    Recipe_Ingredients.RecipeID
  )
  INNER JOIN Ingredients
  ON Ingredients.IngredientID =
     Recipe_Ingredients.IngredientID
)
INNER JOIN Measurements
ON Measurements.MeasureAmountID = Recipe_Ingredients.MeasureAmountID
ORDER BY RecipeTitle, RecipeSeqNo

书中示例 2，返回 88 条记录：

SELECT
Recipe_Classes.RecipeClassDescription,
Recipes.RecipeTitle,
Recipes.Preparation,
Ingredients.IngredientName,
Recipe_Ingredients.RecipeSeqNo,
Recipe_Ingredients.Amount,
Measurements.MeasurementDescription
FROM Recipe_Classes
INNER JOIN (
  (
    (
      Recipes
      INNER JOIN Recipe_Ingredients
      ON Recipes.RecipeID = Recipe_Ingredients.RecipeID
    )
    INNER JOIN Ingredients
    ON Ingredients.IngredientID = Recipe_Ingredients.IngredientID
  )
  INNER JOIN Measurements
  ON Measurements.MeasureAmountID = Recipe_Ingredients.MeasureAmountID
)
ON Recipe_Classes.RecipeClassID = Recipes.RecipeClassID
ORDER BY RecipeTitle, RecipeSeqNo

#8.2.4 使用内连接，列出所有菜品的名称以及制作每种菜品所需的食材

需求分析，返回 所有 菜品的名称，如果确保数据库不存在外键缺失的情况，可以使用内连接，如果可能存在外键缺失的情况，也就是外键为 NULL 导致内连接匹配后丢失该行数据，则需要使用外连接。

返回 88 条记录：

select RecipeTitle, IngredientName
from Recipes
INNER JOIN Recipe_Ingredients
on Recipes.RecipeID = Recipe_Ingredients.RecipeID
inner join Ingredients
on Recipe_Ingredients.IngredientID = Ingredients.IngredientID;

书中示例，返回 88 条记录：

SELECT
Recipes.RecipeTitle,
Ingredients.IngredientName
FROM (
  Recipes
  INNER JOIN Recipe_Ingredients
  ON Recipes.RecipeID = Recipe_Ingredients.RecipeID
)
INNER JOIN Ingredients
ON Ingredients.IngredientID = Recipe_Ingredients.IngredientID;

#8.4.1 使用内连接，列出包含食材牛肉或大蒜的菜品

返回 5 条记录：

select DISTINCT Recipes.RecipeTitle
from Recipes
inner join Recipe_Ingredients
on Recipes.RecipeID = Recipe_Ingredients.RecipeID
inner join Ingredients
on Recipe_Ingredients.IngredientID = Ingredients.IngredientID
where Ingredients.IngredientName = 'Beef' or Ingredients.IngredientName = 'Garlic';

优化一下：

select DISTINCT Recipes.RecipeTitle
from Recipes
inner join Recipe_Ingredients
on Recipes.RecipeID = Recipe_Ingredients.RecipeID
where Recipe_Ingredients.IngredientID in (
  select distinct IngredientID from Ingredients
  where Ingredients.IngredientName = 'Beef' or Ingredients.IngredientName = 'Garlic'
);

书中示例，返回 5 条记录，可参考 view.sql 文件中的 CH08_Beef_Or_Garlic_Recipes：

SELECT DISTINCT Recipes.RecipeTitle
FROM Recipes
INNER JOIN Recipe_Ingredients
ON Recipes.RecipeID = Recipe_Ingredients.RecipeID
WHERE Recipe_Ingredients.IngredientID IN (1, 9);

#8.4.2 使用内连接，列出主菜及其使用的所有食材

返回 53 条记录：

select RecipeTitle, IngredientName, MeasurementDescription, Amount
from Recipes
inner join Recipe_Classes
on Recipe_Classes.RecipeClassID = Recipes.RecipeClassID
inner join Recipe_Ingredients
on Recipes.RecipeID = Recipe_Ingredients.RecipeID
inner join Ingredients
on Recipe_Ingredients.IngredientID = Ingredients.IngredientID
inner join Measurements
on Recipe_Ingredients.MeasureAmountID = Measurements.MeasureAmountID
where Recipe_Classes.RecipeClassDescription = 'Main Course';

书中示例，返回 53 条记录，可参考 view.sql 文件中 CH08_Main_Course_Ingredients：

SELECT Recipes.RecipeTitle,Ingredients.IngredientName,
Measurements.MeasurementDescription,Recipe_Ingredients.Amount
FROM (
  (
    (
      Recipe_Classes
      INNER JOIN Recipes
      ON Recipes.RecipeClassID = Recipe_Classes.RecipeClassID
    )
    INNER JOIN Recipe_Ingredients
    ON Recipes.RecipeID = Recipe_Ingredients.RecipeID
  )
  INNER JOIN Ingredients
  ON Ingredients.IngredientID = Recipe_Ingredients.IngredientID
)
INNER JOIN Measurements
ON Measurements.MeasureAmountID = Recipe_Ingredients.MeasureAmountID
WHERE Recipe_Classes.RecipeClassDescription = 'Main course';

#8.4.3 使用内连接，显示包含胡萝卜的菜品的所有食材

需求分析，观察 DrawSQL ERD 图，首选获取将菜品-食材连接表 Recipe_Ingredients 和食材表 Ingredients 内连接，获取包含胡萝卜的菜品 ID，然后将这个结果集和菜品-食材表食材表 Recipe_Ingredients 以及 Ingredients 内连接，获取包含胡萝卜菜品的全部食材。

返回 16 条记录：

SELECT
	RecipeIDTable.RecipeID,
	Ingredients.IngredientName
FROM (
	SELECT DISTINCT Recipe_Ingredients.RecipeID
	FROM Recipe_Ingredients
	INNER JOIN Ingredients ON Recipe_Ingredients.IngredientID = Ingredients.IngredientID
	WHERE Ingredients.IngredientName = 'Carrot'
) AS RecipeIDTable
INNER JOIN Recipe_Ingredients ON RecipeIDTable.RecipeID = Recipe_Ingredients.RecipeID
INNER JOIN Ingredients ON Recipe_Ingredients.IngredientID = Ingredients.IngredientID

书中示例，返回 16 条，可参考 view.sql 文件中 CH08_Recipes_Containing_Carrots：

SELECT
	Recipes.RecipeID,
	Recipes.RecipeTitle,
	Ingredients.IngredientName
FROM(
	(
		Recipes
		INNER JOIN Recipe_Ingredients
		ON Recipes.RecipeID = Recipe_Ingredients.RecipeID
	)
	INNER JOIN Ingredients ON Ingredients.IngredientID = Recipe_Ingredients.IngredientID
)
INNER JOIN (
	SELECT Recipe_Ingredients.RecipeID
	FROM Ingredients
	INNER JOIN Recipe_Ingredients ON Ingredients.IngredientID = Recipe_Ingredients.IngredientID
	WHERE Ingredients.IngredientName = 'Carrot'
) AS Carrots ON Recipes.RecipeID = Carrots.RecipeID

#8.6 使用内连接，列出所有属于沙拉的菜品

返回 1 条记录：

select Recipes.RecipeTitle
from Recipes
inner join Recipe_Classes
on Recipes.RecipeClassID = Recipe_Classes.RecipeClassID
where Recipe_Classes.RecipeClassDescription = 'Salad';

书中示例，返回 1 条记录，可参考 View.sql 文件 CH08_Salads:

SELECT
	Recipes.RecipeTitle
FROM
	Recipes
	INNER JOIN Recipe_Classes
	ON Recipes.RecipeClassID = Recipe_Classes.RecipeClassID
WHERE Recipe_Classes.RecipeClassDescription = 'Salad';

#8.6 使用内连接，列出所有包含奶制品食材的菜品

需求分析，返回 所有 菜品，但是包含条件，因为这个条件，所以排除了左连接，因为当菜品的外键缺失时，是无法包含奶制品食材的，所以本例只需要使用内连接即可。

返回 2 条记录：

select Recipes.RecipeTitle
from Recipes
inner join Recipe_Ingredients
on Recipes.RecipeID = Recipe_Ingredients.RecipeID
inner join Ingredients
on Ingredients.IngredientID = Recipe_Ingredients.IngredientID
inner join Ingredient_Classes
on Ingredient_Classes.IngredientClassID = Ingredients.IngredientClassID
where Ingredient_Classes.IngredientClassDescription = 'Dairy';

书中示例，返回 2 条记录，可参考 View.sql 文件 CH08_Recipes_Containing_Dairy:

SELECT DISTINCT Recipes.RecipeTitle
FROM Recipes
INNER JOIN Recipe_Ingredients
ON Recipes.RecipeID = Recipe_Ingredients.RecipeID
INNER JOIN Ingredients
ON Ingredients.IngredientID = Recipe_Ingredients.IngredientID
INNER JOIN Ingredient_Classes
ON Ingredient_Classes.IngredientClassID = Ingredients.IngredientClassID
WHERE Ingredient_Classes.IngredientClassDescription = 'Dairy';

#8.6 使用内连接，找出默认度量单位相同的食材

同一张表自连接，需要排除主键 ID 相同的行。

返回 628 条记录：

select DISTINCT *
from Ingredients A
inner join Ingredients B
on A.MeasureAmountID = B.MeasureAmountID
and A.IngredientID != B.IngredientID;

书中示例，返回 628 条记录，可参考 View.sql 文件 CH08_Ingredients_Same_Measure:

SELECT
	First_Ingredient.FirstIngredientName,
	First_Ingredient.MeasurementDescription,
	Second_Ingredient.SecondIngredientName
FROM
	(
		SELECT
		Ingredients.IngredientName AS FirstIngredientName,
		Measurements.MeasurementDescription
		FROM Ingredients
		INNER JOIN Measurements ON Ingredients.MeasureAmountID = Measurements.MeasureAmountID
	) First_Ingredient
	INNER JOIN (
		SELECT
		Ingredients.IngredientName AS SecondIngredientName,
		Measurements.MeasurementDescription
		FROM Ingredients
		INNER JOIN Measurements
		ON Ingredients.MeasureAmountID = Measurements.MeasureAmountID
	) Second_Ingredient
	ON First_Ingredient.FirstIngredientName != Second_Ingredient.SecondIngredientName
	AND First_Ingredient.MeasurementDescription = Second_Ingredient.MeasurementDescription;

#8.6 使用内连接，显示包含牛肉和大蒜的菜品

拆分需求，包含牛肉食材的菜品和包含大蒜菜品食材的交集。

返回 1 条记录：

select A.RecipeTitle from (
  select DISTINCT Recipes.RecipeTitle, Recipes.RecipeID
  from Recipes
  inner join Recipe_Ingredients
  on Recipes.RecipeID = Recipe_Ingredients.RecipeID
  inner join Ingredients
  on Recipe_Ingredients.IngredientID = Ingredients.IngredientID
  where Ingredients.IngredientName = 'Beef'
) as A
inner join
(
  select DISTINCT Recipes.RecipeTitle, Recipes.RecipeID
  from Recipes
  inner join Recipe_Ingredients
  on Recipes.RecipeID = Recipe_Ingredients.RecipeID
  inner join Ingredients
  on Recipe_Ingredients.IngredientID = Ingredients.IngredientID
  where  Ingredients.IngredientName = 'Garlic'
) AS B
on A.RecipeID = B.RecipeID

可以优化一下结构:

select DISTINCT Recipes.RecipeTitle, Recipes.RecipeID
from Recipes
inner join Recipe_Ingredients
on Recipes.RecipeID = Recipe_Ingredients.RecipeID
inner join Ingredients
on Recipe_Ingredients.IngredientID = Ingredients.IngredientID
inner join (
  select DISTINCT Recipes.RecipeTitle, Recipes.RecipeID
  from Recipes
  inner join Recipe_Ingredients
  on Recipes.RecipeID = Recipe_Ingredients.RecipeID
  inner join Ingredients
  on Recipe_Ingredients.IngredientID = Ingredients.IngredientID
  where  Ingredients.IngredientName = 'Garlic'
) AS A
on A.RecipeID = Recipes.RecipeID
where Ingredients.IngredientName = 'Beef';

书中示例，返回 1 条记录，可参考 View.sql 文件 CH08_Beef_And_Garlic_Recipes:

SELECT
	BeefRecipes.RecipeTitle
FROM
	(
	SELECT
		Recipes.RecipeID,
		Recipes.RecipeTitle
	FROM
		(
			Recipes
			INNER JOIN Recipe_Ingredients ON Recipes.RecipeID = Recipe_Ingredients.RecipeID
		)
		INNER JOIN Ingredients ON Ingredients.IngredientID = Recipe_Ingredients.IngredientID
	WHERE
		Ingredients.IngredientName = 'Beef'
	) BeefRecipes
	INNER JOIN (
	SELECT
		Recipe_Ingredients.RecipeID
	FROM
		Recipe_Ingredients
		INNER JOIN Ingredients ON Ingredients.IngredientID = Recipe_Ingredients.IngredientID
	WHERE
	Ingredients.IngredientName = 'Garlic'
	) GarlicRecipes ON BeefRecipes.RecipeID = GarlicRecipes.RecipeID;

#9.2 使用外连接，列出所有的菜品类型以及各类型包含的菜品

使用 Recipe_Classes 分类表作为左表进行查询，除了两张表 交集 的 15 条菜品记录外，还多出了 1 条分类记录，该记录没有任何菜品，但因为是左外连接，所以保留该结果

返回 15 条记录：

select RecipeTitle from Recipes;

返回 16 行记录：

select RecipeClassDescription, RecipeTitle from Recipe_Classes
left outer join Recipes
on Recipe_Classes.RecipeClassID = Recipes.RecipeClassID;

书中示例同上

#9.2 使用外连接，列出不包含任何菜品的菜品类型

需求分析，使用 Recipe_Classes 分类表作为左表进行查询，除了两张表 交集 的 15 条菜品记录外，还多出了 1 条分类记录，该记录没有任何菜品。

返回 1 条记录：

select RecipeClassDescription, RecipeTitle from Recipe_Classes
left outer join Recipes
on Recipe_Classes.RecipeClassID = Recipes.RecipeClassID
where Recipes.RecipeID is null;

书中示例同上

#9.2 使用外连接，列出菜品类型为沙拉 Salad，汤类 Soups 和主菜 Main course 类型的菜品

返回 9 条记录：

select Recipe_Classes.RecipeClassDescription, Recipes.RecipeTitle
from Recipe_Classes
left outer join Recipes
on Recipe_Classes.RecipeClassID =  Recipes.RecipeClassID
where Recipe_Classes.RecipeClassDescription = 'Salad'
or Recipe_Classes.RecipeClassDescription = 'Soup'
or Recipe_Classes.RecipeClassDescription = 'Main course';

书中示例，返回 9 条记录：

SELECT
	RCFiltered.RecipeClassDescription,
	R.RecipeTitle
FROM
	(
	SELECT
		RecipeClassID,
		RecipeClassDescription
	FROM
		Recipe_Classes
	WHERE
		Recipe_Classes.RecipeClassDescription = 'Salad'
		OR Recipe_Classes.RecipeClassDescription = 'Soup'
		OR Recipe_Classes.RecipeClassDescription = 'Main Course'
	) AS RCFiltered
	LEFT OUTER JOIN Recipes AS R ON RCFiltered.RecipeClassID = R.RecipeClassID

#9.2 使用外连接，列出菜品类型为沙拉 Salad，汤类 Soups 和主菜 Main course 类型的菜品，并且菜品名称中含有 beef。

使用不同的查询方式，返回的记录数不一样，但都包含一条 | Main course | Roast Beef | 的记录。

返回 2 条记录：

SELECT
	RCFiltered.RecipeClassDescription,
	R.RecipeTitle
FROM (
	SELECT RecipeClassID, RecipeClassDescription
	FROM Recipe_Classes
	WHERE RecipeClassDescription = 'Salads'
	OR RecipeClassDescription = 'Soup'
	OR RecipeClassDescription = 'Main Course'
) AS RCFiltered
LEFT OUTER JOIN (
	SELECT Recipes.RecipeClassID, Recipes.RecipeTitle
	FROM Recipes
	WHERE Recipes.RecipeTitle LIKE '%beef%'
) AS R
ON RCFiltered.RecipeClassID = R.RecipeClassID

书中其它示例，返回 7 条记录：

SELECT Recipe_Classes.RecipeClassDescription,
       Recipes.RecipeTitle
    FROM Recipe_Classes
    LEFT OUTER JOIN Recipes
    ON Recipe_Classes.RecipeClassID =
       Recipes.RecipeClassID
    AND
       (Recipe_Classes.RecipeClassDescription = 'Salads'
    OR Recipe_Classes.RecipeClassDescription = 'Soup'
    OR Recipe_Classes.RecipeClassDescription =
       'Main Course')
    AND Recipes.RecipeTitle LIKE '%beef%'

#9.2 使用外连接，从 Recipes 数据库中获取所有的菜品类型以及各类型中菜品的名称、制作说明、食材名、食材序号、食材数量和食材度量单位，并按菜品名和序号排序

返回 88 条记录：

select
Recipe_Classes.RecipeClassDescription,
Recipes.RecipeTitle,
Recipes.Preparation,
Ingredients.IngredientName,
Recipe_Ingredients.Amount,
Measurements.MeasurementDescription
from Recipe_Classes
left join Recipes
on Recipe_Classes.RecipeClassID = Recipes.RecipeClassID
inner join Recipe_Ingredients
on Recipes.RecipeID = Recipe_Ingredients.RecipeID
inner join Ingredients
on Recipe_Ingredients.IngredientID = Ingredients.IngredientID
inner join Measurements
on Measurements.MeasureAmountID = Recipe_Ingredients.MeasureAmountID

书中示例，返回 88 条记录：

SELECT
	Recipe_Classes.RecipeClassDescription,
	Recipes.RecipeTitle,
	Recipes.Preparation,
	Ingredients.IngredientName,
	Recipe_Ingredients.RecipeSeqNo,
	Recipe_Ingredients.Amount,
	Measurements.MeasurementDescription
FROM
	(((
				Recipe_Classes
				LEFT OUTER JOIN Recipes ON Recipe_Classes.RecipeClassID = Recipes.RecipeClassID
				)
			INNER JOIN Recipe_Ingredients ON Recipes.RecipeID = Recipe_Ingredients.RecipeID
			)
		INNER JOIN Ingredients ON Ingredients.IngredientID = Recipe_Ingredients.IngredientID
	)
	INNER JOIN Measurements ON Measurements.MeasureAmountID = Recipe_Ingredients.MeasureAmountID
ORDER BY
	RecipeTitle,
	RecipeSeqNo

其中 Soup 分类是没有菜品的，上述 SQL 在第一个 left join 后使用了 inner join，导致菜品 Soup 分类数据丢失，如果需要这个 空行，则可以将 inner join 统统修改为 left join

返回 89 条记录：

select
Recipe_Classes.RecipeClassDescription,
Recipes.RecipeTitle
from Recipe_Classes
left join Recipes
on Recipe_Classes.RecipeClassID = Recipes.RecipeClassID
left join Recipe_Ingredients
on Recipes.RecipeID = Recipe_Ingredients.RecipeID
left join Ingredients
on Recipe_Ingredients.IngredientID = Ingredients.IngredientID

RecipeClassDescription	RecipeTitle
…	…
Dessert	Coupe Colonel
Soup	NULL

[!CAUTION] 需要注意，外连接只在 1 对多关系时才会按照预期那样工作，而 Recipes, Recipe_Classes 是 1 对多 Recipe_Classes，Recipe_Ingredients 是 1 对多的关系，所以下面书中示例并没有像我所给出示例那样，全部使用内连接，从而导致 Soup 信息的丢失，而我上面全部使用 left join 也并不会影响数据。

书中示例，返回 88 条记录：

SELECT Recipe_Classes.RecipeClassDescription, Recipes.RecipeTitle, Recipes.Preparation,
Ingredients.IngredientName,Recipe_Ingredients.RecipeSeqNo,
Recipe_Ingredients.Amount,Measurements.MeasurementDescription
FROM (
	(
		(
			Recipe_Classes
      LEFT OUTER JOIN Recipes
      ON Recipe_Classes.RecipeClassID =Recipes.RecipeClassID
		)
    LEFT OUTER JOIN Recipe_Ingredients
    ON Recipes.RecipeID = Recipe_Ingredients.RecipeID
	)
	INNER JOIN Ingredients
  ON Ingredients.IngredientID = Recipe_Ingredients.IngredientID
)
INNER JOIN Measurements
ON Measurements.MeasureAmountID = Recipe_Ingredients.MeasureAmountID
ORDER BY RecipeTitle, RecipeSeqNo

#9.5 使用外连接，列出未在任何菜品中使用的食材

返回 20 条记录：

select Ingredients.IngredientName
from Ingredients
left join (
	Recipes
	inner join Recipe_Ingredients
	on Recipes.RecipeID = Recipe_Ingredients.RecipeID
)
on Ingredients.IngredientID = Recipe_Ingredients.IngredientID
where Recipe_Ingredients.RecipeId is NULL;

书中示例同上，可参考 view.sql 文件中 CH09_Ingredients_Not_Used。

#9.5 使用全外连接，从 Recipes 数据库中获取所有的菜品类型、所有的菜品名以及各个菜品的食材序号、食材数量和食材度量单位，还有所有的食材名，并依次按菜品类型描述降序、菜品名和食材序列号升序排列

需求分析，主要保留所有菜品类型，也就是 Recipe_Classes 全表数据，所有的菜品名，也就是 Recipes 全表数据，Recipe_Classes 和 Recipes 是 1 对多的关系，所以 inner join 和 left/right join 都不符合保留两张表的全部数据，只有全外连接 full outer join 适用。

观察图中 1 部分，从左到右整个链条都是 1 对多，可以看成一个整体。

观察图中 2 部分，两张表是 1 对多关系，可以看成一个整体。

这两个整体，也就是 2 部分和 1 部分是 1 对多关系，观察 Ingredients 和 Recipe_Ingredients。

所以首先处理第 1 部分，Recipe_Classes 和 Recipes 全外连接，保留两张表的数据，将这个结果集左外连接 Recipe_Ingredients，保留左边结果集的 NULL 行。

Measurements 和第 1 部分是 1 对多，实际上反过来，第 1 部分和 Measurements 是 1 对 1 的关系，可以无关紧要的内连接一下。

第二部分由于需求中没有使用到食材的分类，所以两张表不用外连接，因为没说要全部的食材和食材分类，所以不需要全外连接，只需要 Ingredients 表即可。

然后第 2 部分和第 1 部分是 1 对多关系，为了保全两张表的全部信息，所以要全外连接。

书中示例，返回 109 条记录，CH09_All_Recipe_Classes_All_Recipes：

-- 由于 MySQL 不支持全外连接，所以需要自己转换 SQL
SELECT
	Recipe_Classes.RecipeClassDescription,
	Recipes.RecipeTitle,
	Ingredients.IngredientName,
	Recipe_Ingredients.RecipeSeqNo,
	Recipe_Ingredients.Amount,
	Measurements.MeasurementDescription
FROM
	(
		(
			(
				Recipe_Classes
				FULL OUTER JOIN Recipes ON Recipe_Classes.RecipeClassID = Recipes.RecipeClassID
			)
			LEFT OUTER JOIN Recipe_Ingredients ON Recipes.RecipeID = Recipe_Ingredients.RecipeID
		)
		INNER JOIN Measurements ON Measurements.MeasureAmountID = Recipe_Ingredients.MeasureAmountID
	)
	FULL OUTER JOIN Ingredients
	ON Ingredients.IngredientID = Recipe_Ingredients.IngredientID
	and Recipe_Classes.RecipeClassID = Recipes.RecipeClassID
ORDER BY
	RecipeClassDescription DESC,
	RecipeTitle,
	RecipeSeqNo

#9.7 使用外连接，显示不包含任何菜品的菜品类型

返回 1 条记录：

select Recipe_Classes.RecipeClassID, Recipe_Classes.RecipeClassDescription
from Recipe_Classes
left join Recipes
on Recipes.RecipeClassID = Recipe_Classes.RecipeClassID
where Recipes.RecipeClassID is NULL;

书中示例同上，返回 1 条记录，可参考 view.sql 文件 CH09_Recipe_Classes_No_Recipes

#9.7 使用外连接，显示所有的食材及其被用来制作的菜品

返回 108 条记录：

select Ingredients.IngredientName, Recipes.RecipeTitle
from Ingredients
left join (
	Recipes
	inner join Recipe_Ingredients
	on Recipes.RecipeID = Recipe_Ingredients.RecipeID
)
on Ingredients.IngredientID = Recipe_Ingredients.IngredientID;

书中示例同上，返回 108 条记录，可参考 view.sql 文件 CH09_All_Ingredients_Any_Recipes

#9.7 使用外连接，列出菜品类型 Salad(沙拉)、Soup(汤菜)和 Main course(主菜)及其包含的菜品

返回 9 条记录：

select * from Recipe_Classes
left join Recipes
on Recipes.RecipeClassID = Recipe_Classes.RecipeClassID
where RecipeClassDescription in ('Soup','Salad','Main course')

书中示例返回 9 条记录，可参考 view.sql 文件 CH09_Salad_Soup_Main_Courses:

SELECT
	RCFiltered.RecipeClassDescription,
	Recipes.RecipeTitle
FROM	(
	SELECT RecipeClassID, RecipeClassDescription
	FROM Recipe_Classes
	WHERE RecipeClassDescription = 'Salad'
	OR RecipeClassDescription = 'Soup'
	OR RecipeClassDescription = 'Main course'
) as RCFiltered
LEFT OUTER JOIN Recipes
ON RCFiltered.RecipeClassID = Recipes.RecipeClassID;

#9.7 使用外连接，显示所有的菜品类型及其包含的菜品

返回 16 条记录：

select * from Recipe_Classes
left join Recipes
on Recipes.RecipeClassID = Recipe_Classes.RecipeClassID

书中示例同上，返回 16 条记录，可参考 view.sql 文件 CH09_All_RecipeClasses_And_Matching_Recipes

#10.4 使用 union，生成一个索引表，其中包含所有的菜品类型、菜品名和食材

书中示例，返回 101 条记录，返回 view.sql 文件中 CH10_Classes_Recipes_Ingredients：

SELECT
	Recipe_Classes.RecipeClassDescription AS IndexName,
	'Recipe Class' AS Type
FROM Recipe_Classes
UNION
SELECT
	Recipes.RecipeTitle,
	'Recipe' AS Type
FROM Recipes
UNION
SELECT
	Ingredients.IngredientName,
	'Ingredient' AS Type
FROM Ingredients

#11.3 在筛选器中使用标量子查询，列出所有包含海鲜食材分类的菜品

书中示例，返回 2 条记录：

SELECT RecipeTitle
FROM Recipes
WHERE Recipes.RecipeID IN (
	SELECT RecipeID
	FROM Recipe_Ingredients
	WHERE Recipe_Ingredients.IngredientID IN (
		SELECT IngredientID
		FROM Ingredients
		INNER JOIN Ingredient_Classes
		ON Ingredients.IngredientClassID = Ingredient_Classes.IngredientClassID
		WHERE Ingredient_Classes.IngredientClassDescription = 'Seafood'
	)
);

以及上自查询内的子查询内的内连接也可以改为子查询

SELECT RecipeTitle
FROM Recipes
WHERE Recipes.RecipeID IN (
	SELECT RecipeID
	FROM Recipe_Ingredients
	WHERE Recipe_Ingredients.IngredientID IN (
		SELECT IngredientID
		FROM Ingredients
    WHERE Ingredients.IngredientClassID IN (
			SELECT IngredientClassID
      FROM Ingredient_Classes
      WHERE Ingredient_Classes.IngredientClassDescription = 'Seafood'
		)
	)
);

使用过多的子查询会使 SQL 语句难以理解，尽可能使用内连接。

SELECT RecipeTitle
FROM Recipes
WHERE Recipes.RecipeID IN (
	SELECT RecipeID FROM (
			Recipe_Ingredients
			INNER JOIN Ingredients
			ON Recipe_Ingredients.IngredientID = Ingredients.IngredientID
	)
	INNER JOIN Ingredient_Classes ON Ingredients.IngredientClassID = Ingredient_Classes.IngredientClassID
	WHERE Ingredient_Classes.IngredientClassDescription = 'Seafood'
)

实际上完全可以全部使用内连接查询，返回 2 条记录：

select Recipes.RecipeTitle
from Recipes
inner join Recipe_Ingredients
on Recipes.RecipeID = Recipe_Ingredients.RecipeID
inner join Ingredients
on Recipe_Ingredients.IngredientID = Ingredients.IngredientID
inner join Ingredient_Classes
on Ingredients.IngredientClassID = Ingredient_Classes.IngredientClassID
where Ingredient_Classes.IngredientClassDescription = 'Seafood';

但要考虑到 Recipes 和 Recipe_Ingredient 是 1 对多的关系，即一道菜品可能使用多道 Seafood 分类的食材，所以在上述 SQL 中还要使用 DISTINCT 去重，这又会加重 SQL 查询的负担。

而且使用了 DISTINCT 的视图都是不可更新的，因为 DISTINCT 掩盖了底层行的身份，导致数据库系统不知道该更新哪一行

#11.3 筛选器中使用子查询，列出所有使用了海鲜类食材的菜品以及它们各自使用的所有食材

书中示例，返回 22 条记录

SELECT
	Recipes.RecipeTitle,
	Ingredients.IngredientName
FROM (
		Recipes
		INNER JOIN Recipe_Ingredients
		ON Recipes.RecipeID = Recipe_Ingredients.RecipeID
)
INNER JOIN Ingredients ON Ingredients.IngredientID = Recipe_Ingredients.IngredientID
WHERE Recipes.RecipeID IN (
	SELECT RecipeID
	FROM (
		Recipe_Ingredients
		INNER JOIN Ingredients
		ON Recipe_Ingredients.IngredientID = Ingredients.IngredientID
	)
	INNER JOIN Ingredient_Classes
	ON Ingredients.IngredientClassID = Ingredient_Classes.IngredientClassID
	WHERE Ingredient_Classes.IngredientClassDescription = 'Seafood'
)

上述 SQL 中使用了表子查询和标量子查询。

#11.3 筛选器中使用限定谓词ANY，列出使用了牛肉或大蒜的菜品

书中示例，返回 5 条记录

SELECT Recipes.RecipeTitle
FROM Recipes
WHERE Recipes.RecipeID IN (
	SELECT Recipe_Ingredients.RecipeID
	FROM Recipe_Ingredients
	WHERE Recipe_Ingredients.IngredientID = ANY (
		SELECT Ingredients.IngredientID
		FROM Ingredients
		WHERE Ingredients.IngredientName IN ( 'Beef', 'Garlic' )
	)
)

上述 SQL 中使用了表子查询和标量子查询，以及使用限定谓词 ANY 来过滤数据。

#11.5.1 列表达式中使用标量子查询，列出所有的肉食食材及其被用来制作的菜品的数量

书中示例，返回 11 条记录，可参考 view.sql 文件中 CH11_Meat_Ingredient_Recipe_Count：

SELECT
	Ingredient_Classes.IngredientClassDescription,
	Ingredients.IngredientName,
	(
		SELECT COUNT(*) FROM Recipe_Ingredients
		WHERE Recipe_Ingredients.IngredientID = Ingredients.IngredientID
	)
	AS RecipeCount
FROM Ingredient_Classes
INNER JOIN Ingredients
ON Ingredient_Classes.IngredientClassID = Ingredients.IngredientClassID
WHERE Ingredient_Classes.IngredientClassDescription = 'Meat';

#11.5.2 筛选器中使用子查询，显示包含胡萝卜的菜品使用的所有食材

书中示例，返回 16 条记录，可参考 view.sql 文件中 CH11_Recipes_Ingredients_With_Carrots：

SELECT
	Recipes.RecipeTitle,
  Ingredients.IngredientName
FROM (
	Recipes
  INNER JOIN Recipe_Ingredients
  ON Recipes.RecipeID = Recipe_Ingredients.RecipeID
)
INNER JOIN Ingredients
ON Ingredients.IngredientID = Recipe_Ingredients.IngredientID
WHERE Recipes.RecipeID IN (
	SELECT Recipe_Ingredients.RecipeID
  FROM Ingredients
  INNER JOIN Recipe_Ingredients
  ON Ingredients.IngredientID = Recipe_Ingredients.IngredientID
  WHERE Ingredients.IngredientName = 'carrot'
)

#11.7 使用子查询 TODO，显示所有的菜品类型及其包含的菜品数量

提示: 使用聚合函数 COUNT

书中示例，返回 7 条记录，可参考 view.sql 文件中 CH11_Count_Of_Recipe_Types:

SELECT
	RecipeClassID,
	RecipeClassDescription,
	( SELECT COUNT(*) FROM Recipes
		WHERE Recipes.RecipeClassID = Recipe_Classes.RecipeClassID
	)
	AS RecipeCount
FROM Recipe_Classes;

#11.7 使用子查询 TODO，列出在某个菜品中使用了且在该菜品中的度量单位不是默认度量单位的食材

提示: 使用<> SOME 创建一个筛选器

书中示例，返回 21 条记录，可参考 view.sql 文件中 CH11_Ingredients_Using_NonStandard_Measure:

SELECT IngredientID, IngredientName, MeasureAmountID
FROM Ingredients
WHERE MeasureAmountID <> ANY (
		SELECT Recipe_Ingredients.MeasureAmountID
		FROM Recipe_Ingredients
		WHERE Recipe_Ingredients.IngredientID = Ingredients.IngredientID
);
